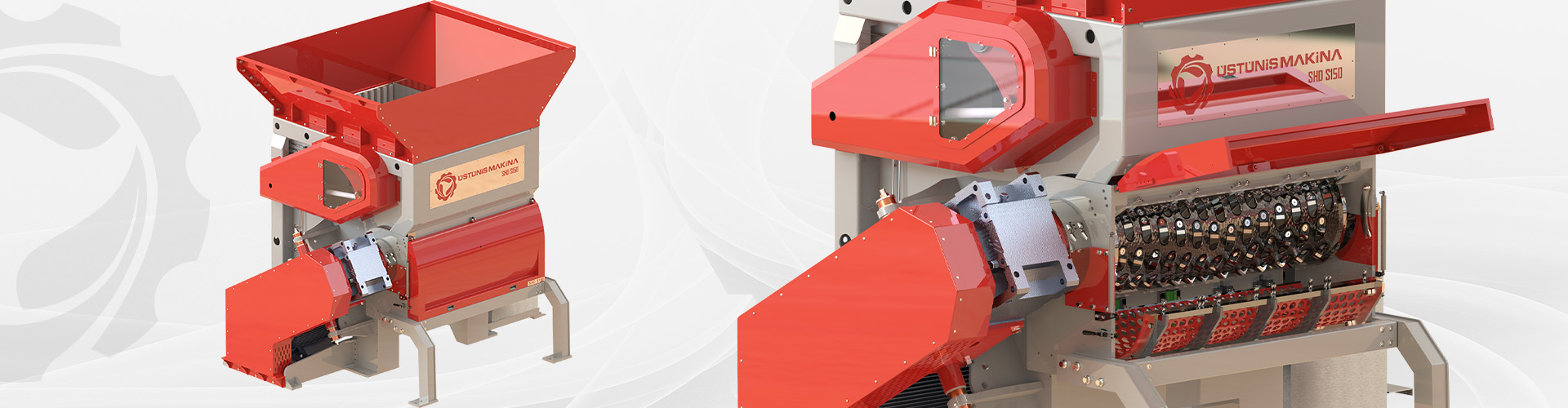

S Type Shredders are designed for shredding post-industrial, post-consumer and agricultural plastic scraps. They are used for size reduction of plastic waste such as pipes, lumps, crates, film rolls, film bales, woven bags and also cardboard, paper, textile scrap.  As per its operation principle Shredder is not affected by thickness, hardness, and density of scrap to be shred.

Scrap to be shred is pushed onto the rotor by hydraulic powered pusher. By pushing the scrap onto the rotating blades increase the throughput. Inclined shredding chamber and swing type ram are designed especially for shredding scrap with low bulk density.

Pushing interval, pushing type, and rotor speed are controlled by intelligent software and PLC system. Parameters to be used should be chosen from one of 3 pre-set receipts according to the scrap to be shred. Receipt parameters can be tailored according to type of scrap.

Shredder rotors have cooling channels to be cooled by chilled water for protecting material from overheating during shredding. Rotors are protected by hard surface welding or Hardox armour against abrasive effects.

Rotating and fixed blades are suitable for multi side using and are made of special alloy steel. Blade size, blade type and rotating blade amount is chosen according to scrap to be shred. Rotating blades are fixed on the rotor by blade holders to prevent damage on rotor surface. Fixed blades are mounted on plates which can be moved to adjust shredding gap between rotating and fixed blades. Screens are made of special steel with different hole sizes for each type of scrap.

Bearings are mounted in insulated housings with cooling to extend lifetime of bearings. Heavy duty gearbox and shock absorbers can handle dynamic load during shredding. Energy efficiency is maximized by inverter-controlled motors.



S TİP S120
S150
ROTOR LENGTH (mm) 1200
1500
ROTOR DIAMETER (mm) 590 590
ROTOR KNIFE SIZE (mm) 43x43
50x50
61x61
43x43
50x50
61x39
ROTOR KNIFE (psc) 100
90
150
130
120
200
POWER (kw) 132-160
160-200
SHREDDING CHAMBER (mm) 1250x1700
1500x1700
WEIGHT (kg) 11.500
13.000
TROUGHPUT (kg/s)* 850-1500
1000-2500

Technical details are for information only. Producer reserves right to change catalogue data without notice.

* May differ according to type, form, MFI of plastic and filtration fineness.
