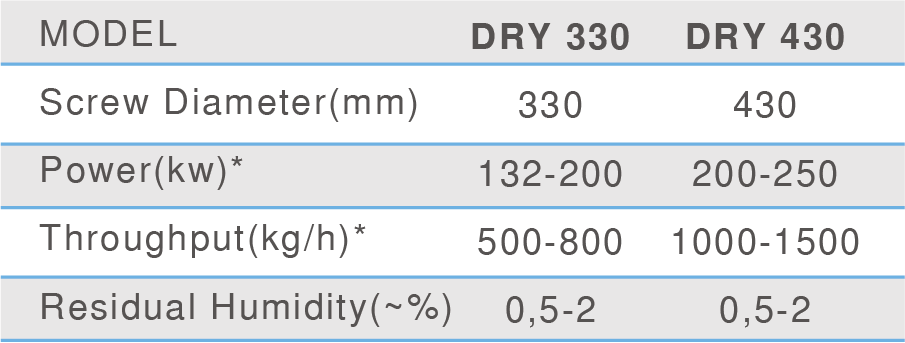

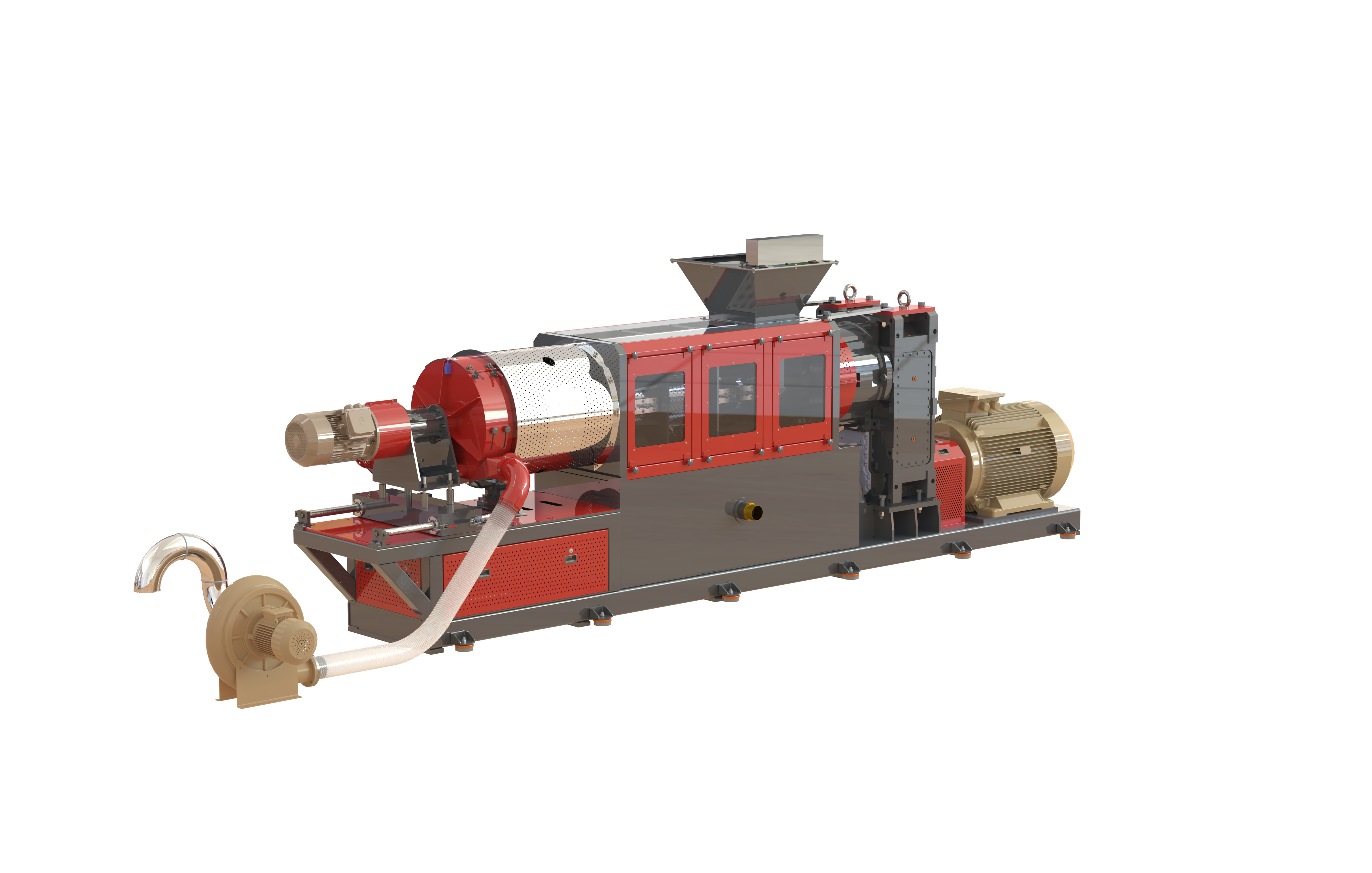

FILM DRYERS

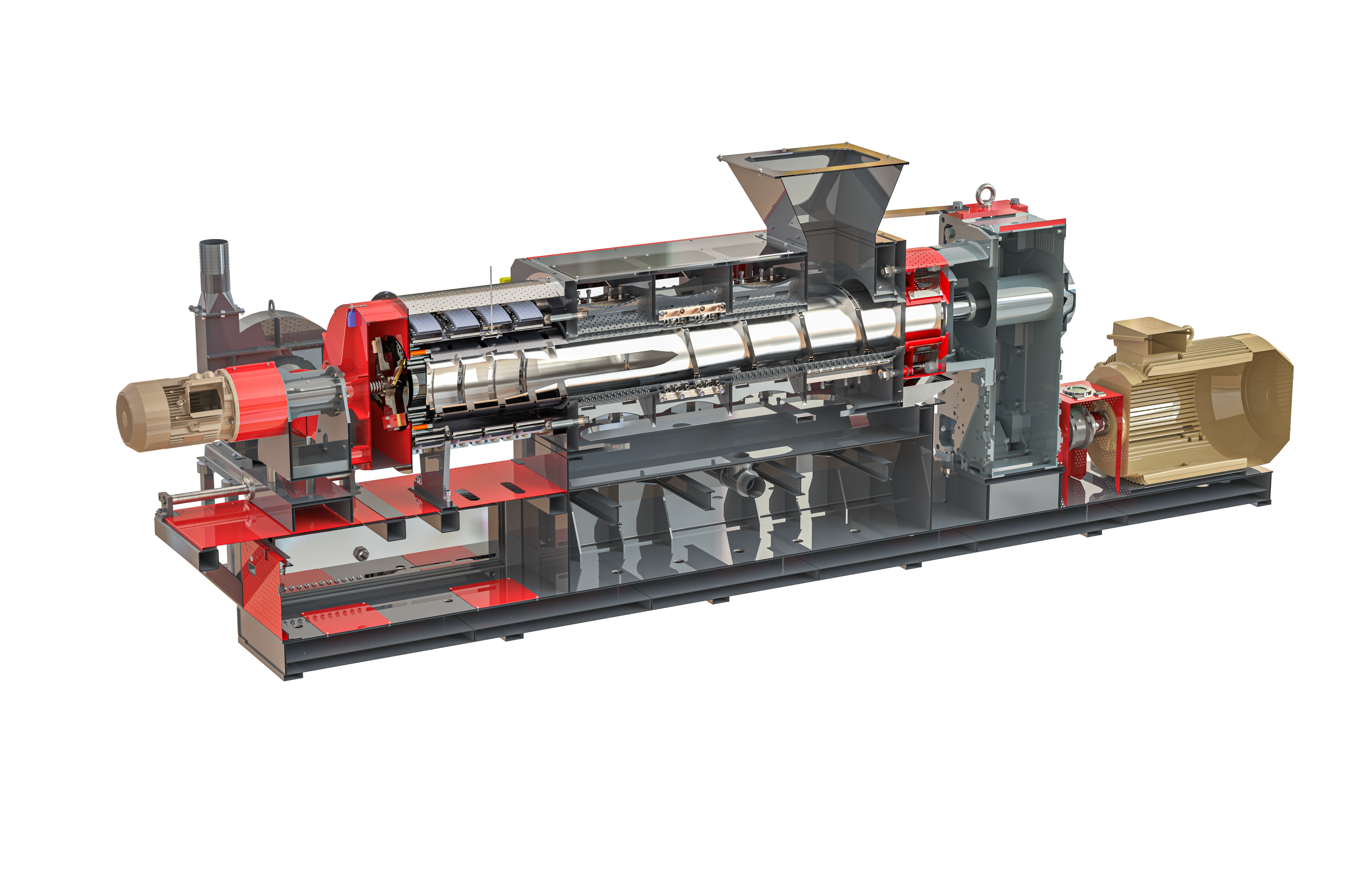

The most efficient drying and compacting system for film (flexible) plastics. Friction occurred by the specially designed screw dewaters and softens the plastics, and softened plastics are cut into flakes by the rotating blades after the die plate. Flakes are cooled by air and transferred to the next step.
0,5 – 2% residual humidity is guaranteed even for the thinnest film.

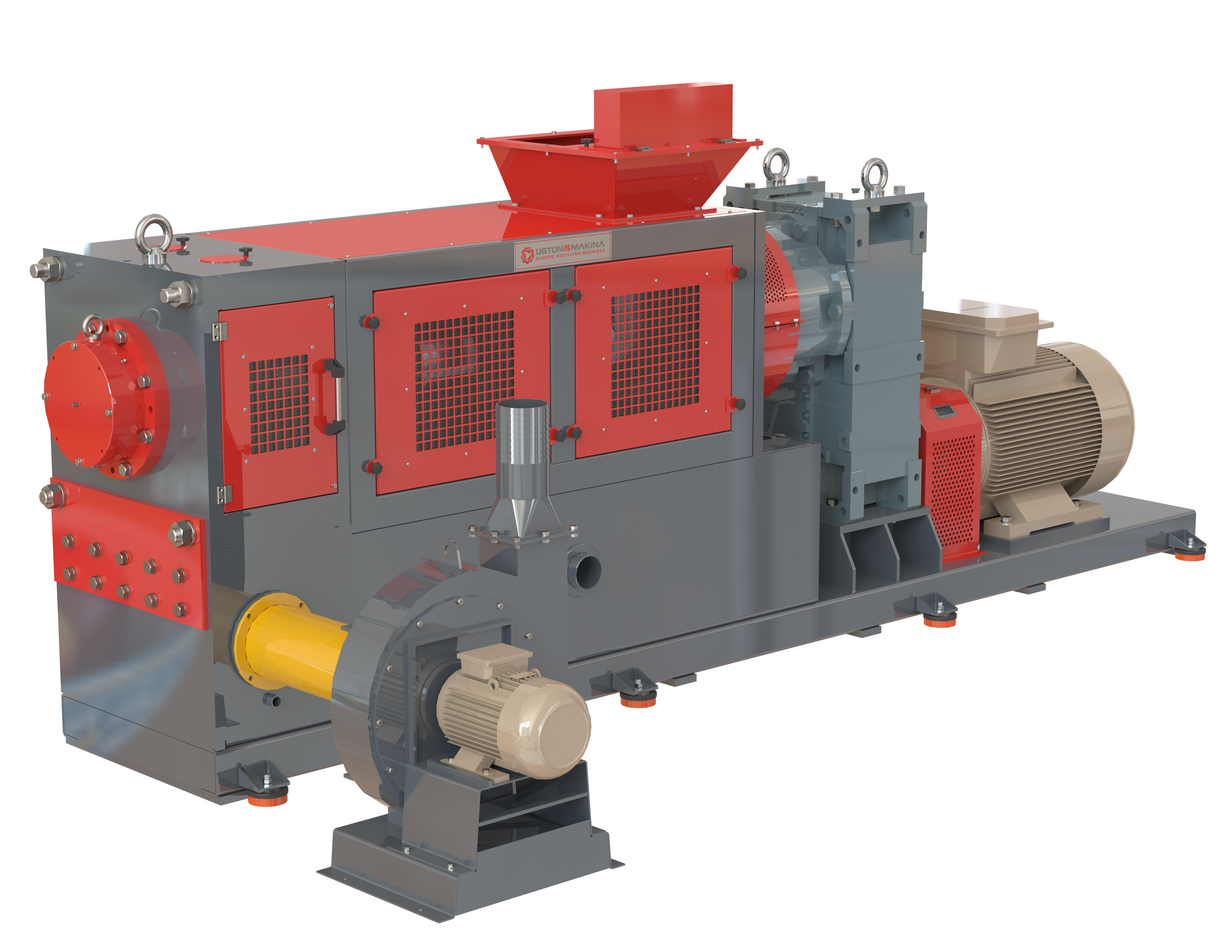

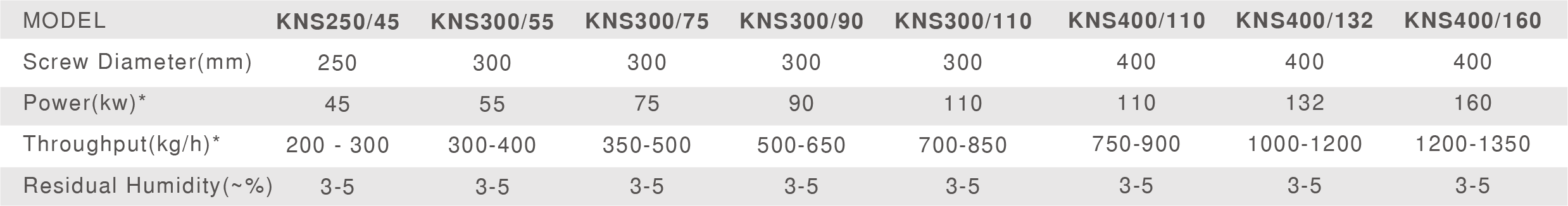

FILM DEWATERING MACHINE
Film Dewatering Machines are used for dewatering wet film (flexible) plastics by mechanical squeezing method. Residual moisture is between 4 – 8% according to thickness and type of film.
Film Dewatering Machine is not affected by fluctuation of material flow from the washing lines thanks to the innovated screw design.
Comparing to hot air dryers and centrifugal dryers, Film Dewatering Machines are the most efficient systems in Film Dewatering when considering energy efficiency, operation costs, capacity and easy operation.
Heavy duty steel chassis and high torque extruder type gearbox can easily deal with dynamic force that is created during mechanical pressing.
Technical details are for information only. Producer reserves right to change catalogue data without notice.
